Triple Succah Rooflight

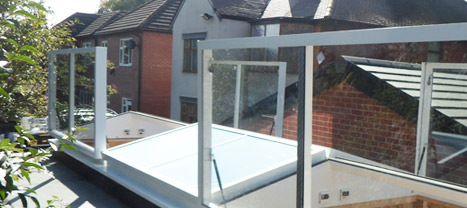

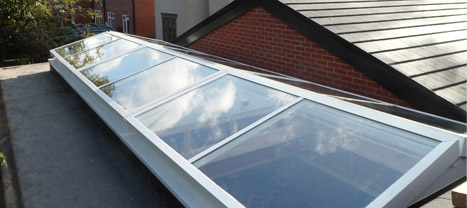

The above images show the installation of a triple succah rooflight at a Manchester synagogue showing the versatility of our succah rooflight designs. This triple unit can be supplied up to a maximum length of 10 meters.

Click here for more information including payments, guarantees and manufacturing

Click here for Sizes explained, quotation/ order sheet

Standard Specification

Size - Length 3000mm x Width 2000mm
Glazing - 25mm thick triple wall u/v protected clear polycarbonate
Upstand Kerbs and Framework - Galvanised steel & aluminium
Opening Mechanism - Gas spring actuators
Closing Mechanism - Hand Operated Pulley System
Insulation To Metal Kerbs - 13mm PVC foam Board with outter Skin Galvanized Steel
Finish Colour & Specification - White powder coated finish to BS standards, Central 150m opening between units

Additional Cost Options

• Glazing: Various polycarbonate tints available, solid pvc foam boards

• various powder coating finishes

• Larger sized units

• Pulley, pull down locations

• Noise reduction anti glare

• Electrical opening

Product Features & Benefits

• User friendly and simple to operate

• Low maintenance. Cleaning wash down with mild detergent

• Full internal view given, showing a clear un-obstructed view.

• Can be removed and re-fitted for future roof works.

• security: 2 no. sash hand tighten locks per unit

• Streamlined Features

• Over 30 years of experience in roof light product design


Insulation (u) Values

• Triple wall polycarbonate: 17

• PVC foam insulation 13mm: 2.6.

• 25mm insulation (cost option): 1.7

• Impact test to BS 55 44

• Fire Rating compliance to B54 76

Fitting

• All Succah Roof units fitted by our own experienced and fully trained operatives
